대형 디바이스 측정용 초고속 CTIA OTA Reverberation Chamber
Improve the Wireless of Large Form Factor devices

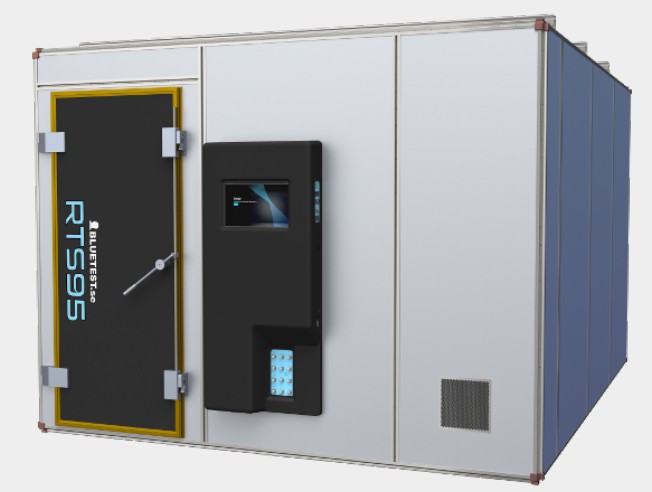

넓은 공간을 가진 RTS95B를 사용하면 TV, Smart home appliances, Large M2M devices, Small base stations, Automotive subsystems과 같은 Larger form factor test 대상물을 측정할 수 있습니다. 선택적으로 제공되는 1.2m 또는 1.5m의 Heavy duty turntable은 최대 150kg의 중량까지 운용할 수 있어서, 테스트할 수 있는 장치의 범위를 넓힐 수 있습니다.

The Reverberation Chamber is CTIA Approved for Large Form Factor Devices

Reverberation Chamber는 CTIA의 OTA performance test를 위한 Test plan에서 Large form factor devices의 유일한 측정 방법으로 포함되어 있습니다. 노트북 크기보다 큰 모든 기기가 Large form factor devices 정의 됩니다.

Customer Applications

RTS95B를 보유한 저희의 고객은 넓은 측정 공간을 이용하여 세탁기와 대형 Smart TV 측정에 활용하고 있습니다. DUT의 거치 위치가 중요하지 않은 Reverberation Chamber는 Handheld device 또는 Body worn antenna를 사용하여 RTS95B 공간내에서 측정할 수 있는 유연성을 제공합니다.

Technical Specifications

Model RTS95B
Frequency Range 400 MHz – 12 GHz (43.5 GHz w. 5G option)
Measurement Antennas 400 MHz – 12 GHz : 4, 8 or 16
6 GHz – 43.5 GHz : Up to 2
Shielding 400 MHz – 12 GHz : Typ.>100 dB
6 GHz – 43.5 GHz : Typ.>80 dB
Power Consumption Typical 160-220 W (depending on installed options)
Weight 1750 kg (3858 lb) (depending on installed options)
External Dimensions Width: 4430 mm (174.4”)
Height: 2610 mm (102.8”)
Depth: 3340 mm (131.5”)
Accuracy Passive Measurements 0.3 dB (STD)
Accuracy TRP 0.3 dB (STD)
Accuracy TIS 0.5 dB (STD)
Repeatability 0.1 dB (STD)

FEATURES

  • Large Device 성능 평가 – CTIA version 1.0
  • Smart Home Appliances, TV, M2M (Machine-to-Machine) 장비 측정
  • Body Worn Antennas, Live Person 측정
  • Automotive Sub-systems

BENEFITS

  • Smart Home Device의 증가로 다양한 Device 군의 측정이 가능
  • 적은 측정 소요시간으로 개발 및 성능 검토 기간을 단축

ADVANTAGES

  • 500kg 이하의 Large Device 측정 가능
  • 16 Spatial Streams 지원으로 고사양의 Carrier Aggregation 측정 가능
  • 400MHz – 43.5GHz의 주파수 제공
