greenTEG

gSKIN Heat Flux Sensor

정밀한 열 관류율 측정을 위한 센서

gSKIN Heat Flux Sensor는 알루미늄 타입과 실리콘 타입으로 구성되어 있습니다.

알루미늄 타입 센서는 4.4mm x 4.4mm, 10mm x 10mm, 18mm x 18mm 세가지 크기가 있으며 작은 사이즈로 열 저항이 작아 높은 정확성의 Heat Flux 값을 측정할 수 있습니다.

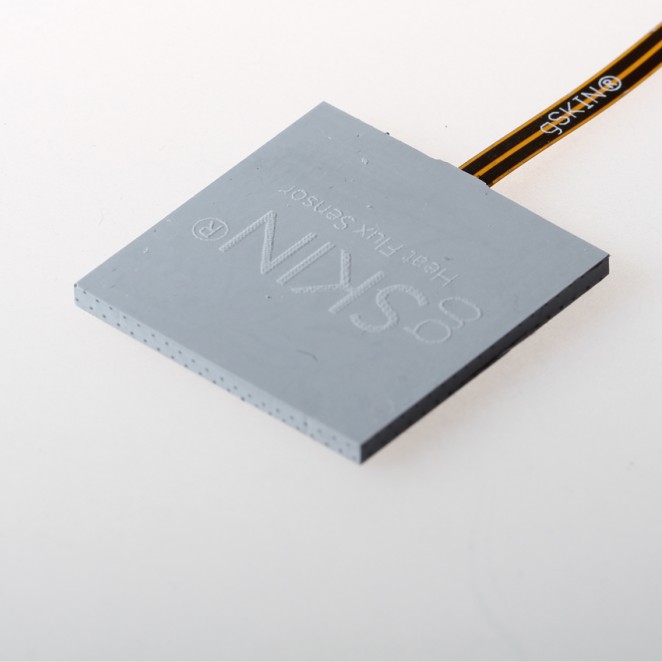

실리콘 타입의 센서는 30mm x 30mm의 크기로, 실리콘의 특성으로 인해서 측정 시 주변 대류의 영향을 최소화 할 수 있습니다.

APPLICATION

  • 배터리 열량 측정 및 분석
  • 직물 & 천 등의 열 전달 계수 측정
  • 심부 온도 측정
  • 태양 복사선 측정
  • 파이프 내부 오염 상태 등을 탐지
  • 즉각적인 화학반응 측정

SPECIFICATION

Product Name XM 26 9C / XM 27 9C XP 26 9C / XP 27 9C XI 26 9C / XI 27 9C
Detector Type thermoelectric thermoelectric thermoelectric
Sensing Area (a x b) [mm x mm] 4.4 x 4.4 10.0 x 10.0 18.0 x 18.0
Sensor Thickness (d) [mm] 0.5 0.5 0.5
Heat Flux Range Min / Max [kW/m2] -150 / 150 -150 / 150 -150 / 150
Noise Equivalent Heat Fluxa [W/m2] 0.34 0.05 0.02
Heat Flux Resolution with gSKIN® DLOGb [W/m2] 0.41 0.06 0.02
Min. Sensitivity (S) [μV/(W/m2)] 1.5 7.0 25.0
Avg. Sensitivity (S) [μV/(W/m2)] 2.3 8.4 50.0
Temperature Dependence of S [%/°C] 0.25 0.25 0.25
Response Time (0-95%)c [s] 0.7 0.7 0.7
Electrical Resistance [Ohm] <30 <80 <300
Thermal Conductivity [W/(m*K)] ~1.1 ~1.2 ~1.3
Operating Temperature Range Min/Max [°C] -50/150 -50/150 -50/150
Calibration Temperature Range Min/Max [°C] -30/70 -30/70 -30/70
Calibration Accuracy [±%] 3 3 3
Homogeneityd [±%] 1 1 1
Linearity with Power [±%] 1 1 1
Cable Length [m] (Connector) 1 1 1
  • a 최적의 정상 상태 조건에서 값을 시험평가
  • b gSKIN® DLOG-4219를 사용하여 보장 된 최소 Heat Flux Resolution
  • c 예측값
  • d 감지 영역에서 위치에 따른 신호 변화
