SPEAG

DAK

유전특성 측정 솔루션

Dielectric Assessment Kit Product Line

DAK, DAKS (DAK System) and DAK-TL2 (DAK-Thin Layer)

DAK는 넓은 주파수 대역(4MHz-67GHz)에서 유전특성(유전율, 도전율, Loss Tangent)을 측정하는 Probe 입니다. Vector Network Analyzer(VNA)와 연결하여 사용하며, 빠르고 정교하며, 비파괴 측정이 가능합니다. (액체, 고체 및 반고체 시료의 유전특성을 측정할 수 있습니다)

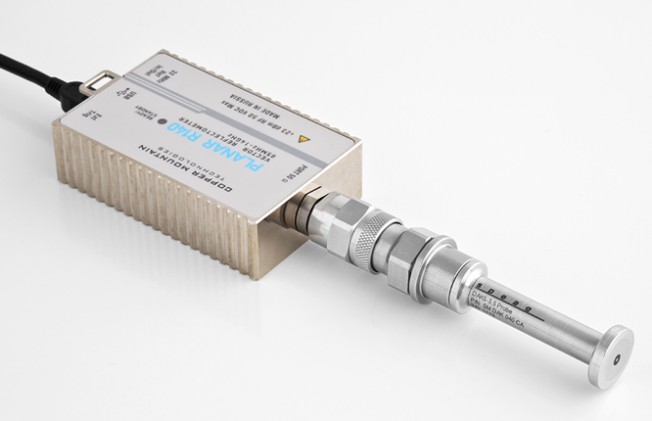

DAKS는 DAK Probe와 Reflectometer를 직접 연결하여 안정적이고 편리한 측정이 가능합니다. DAK-TL2를 이용하면 얇은 두께(0.1mm~10mm)의 고체 시료를 간편하게 측정할 수 있습니다.

최근 국제 규격의 동향에 따른 교정 서비스를 제공합니다. (ISO/IEC 17025 Accreditation 획득)

FEATURES

  • 3종류의 프로브로 4MHz~67GHz의 넓은 주파수 범위 측정
  • 타겟 대비 측정 값 편차 확인 가능
  • 장비 유효성 검증용 Reference 시료 제공

Advantages

  • 넓은 주파수 대역을 한번에 측정 가능
  • 간단한 시료 측정 조건
  • 시료의 두께 측정 가능
  • 3초 내외의 빠른 측정 시간

Benefits

  • 높은 VNA 호환성
  • 간편한 사용
