BLUETEST

RTS 25

WLAN, Bluetooth 및 IoT 장치의 측정에 최적화된 OTA Reverberation Chamber
Scaled-Down Test System

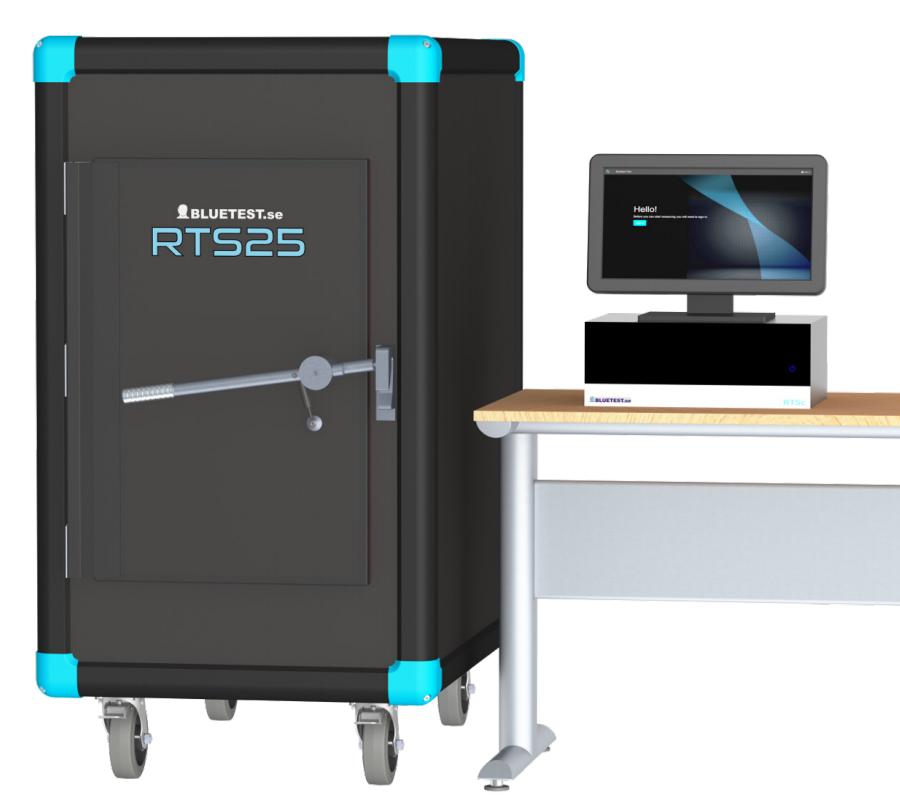

RTS2는 RTS series 중에서 가장 작은 모델로, WLAN, Bluetooth 및 IoT Device의 측정을 위해 최적화 하였습니다. RTS25는 Chamber Size가 작은 환경속에서도 다중경로 환경을 지원하며, 반복 가능하고 정확한 측정결과를 제공합니다.

Optimized for WLAN, Bluetooth and IoT Measurements

RTS25는 2.4GHz 및 5GHz ISM 대역뿐만 아니라 Wi-Fi 6e를 대상으로 하는 새로운 6-7.125GHz 대역에서의 OTA 측정을 위한 Reverberation Chamber 입니다. 응용 분야는 모든 버전의 Bluetooth 및 WLAN, 그리고 이러한 주파수에서 작동하는 기타 IoT 표준을 포함합니다. 작은 크기에도 불구하고, RTS25의 시험 영역은 40x30x30cm 내의 무선 장치를 수용할 수 있습니다. RTS25는 액세스 포인트, 노트북, 스피커, 의료 보조 장치 및 스마트 홈 솔루션과 같은 작은 기기 개발자들에게 높은 수준의 무선 성능 테스트 도구를 제공합니다.

Perfect for MIMO Measurements

MIMO 기술은 대부분 다중경로 환경에서 작동할 수 있어야 합니다. Reverberation Chamber는 외벽이 반사체로 구성되어 다중경로 환경을 제공하므로, 다중경로 환경을 시뮬레이션하기 위해 비싼 추가 Instrument를 추가할 필요가 없습니다.

Complete OTA WLAN Test Solution

BLUETEST는 802.11a/b/g/n/ac/ax 표준을 지원하는 OTA Throughput Measurement WLAN 솔루션을 제공할 수 있습니다. RTS 시스템에 ISS11 Attenuator 와 TRU2 WLAN Reference Unit 을 추가하여 WLAN OTA IP Throughput Measurement 및 “App-less” Throughput Measurement에 대한 완벽한 솔루션을 갖출 수 있습니다.

* ISS11 Attenuator System

ISS11 Attenuator는 External Access Point나 Device와 함께 사용되며, 측정에서 경로 손실을 제어 합니다. 측정에 사용되는 연결된 Access Point에 따라 Wi-Fi 6e를 포함한 최대 4×4 MIMO를 지원하는 모든 WLAN 802.11 표준을 지원할 수 있습니다.

* TRU2 WLAN Reference Radio

TRU2 WLAN Reference Unit은 Dual Band WLAN Reference Radio로, Access Point 모드와 WLAN client(station) 모드로 설정할 수 있습니다. Uplink와 Downlink에 대한 Data Throughput 측정이 가능합니다. TRU2 WLAN Reference Radio는 Wi-Fi 6E 및 모든 Legacy WLAN standards을 지원합니다.

Technical Specifications

Model name RTS25
Frequency ranges 2.4–2.5 GHz
5.0–6.0 GHz
6.0–7.125 GHz
Shielding 80 dB
Power consumption RTS25 Typical 25 W
Power consumption RTSc Typical 40–70 W
Chamber weight 240 kg (529.1 lb) (depending on installed options)
Chamber external dimensions Width: 800 mm (31.5″)
Height: 1472 mm (57.95″)
Depth: 1387 mm (54.6″)
Max DUT size Width: 0.4 m (15.75″)
Height: 0.3 m (11.81″)
Depth: 0.3 m (11.81″)
Max DUT weight 12 kg (26.45 lb)
Delivery format Fully mounted
Accuracy TRP & TIS 0.5 dB (STD)
when chamber loaded to 50 ns delay spread
Repeatability 0.1 dB (STD)
Multiple antenna support 4 active antenna ports (default)
8 active antenna ports (option)
System control RTSc and Bluetest Flow software platform

FEATURES

  • WLAN, Bluetooth를 측정하기 위한 800mm(W) x 1,472mm(H) x 1,387mm(D)의 최적화된 크기
  • RIMP(Rich Isotropic Multipath) 환경에서의 MIMO 성능 평가
  • 실제 환경과 유사한 무선 성능 결과 제공

Benefits

  • 적은 투자비용으로 WLAN, Bluetooth 무선 성능 검토 가능
  • 적은 측정 소요시간으로 개발 및 성능 검토 기간을 단축

Advantages

  • 적은 공간 활용으로 Accuracy 있는 WLAN, Bluetooth 무선 성능 제공
  • 최대 8 Spatial Streams 지원
  • WLAN, Bluetooth에 최적화된 2.4~2.5GHz, 5~6GHz 주파수 제공
